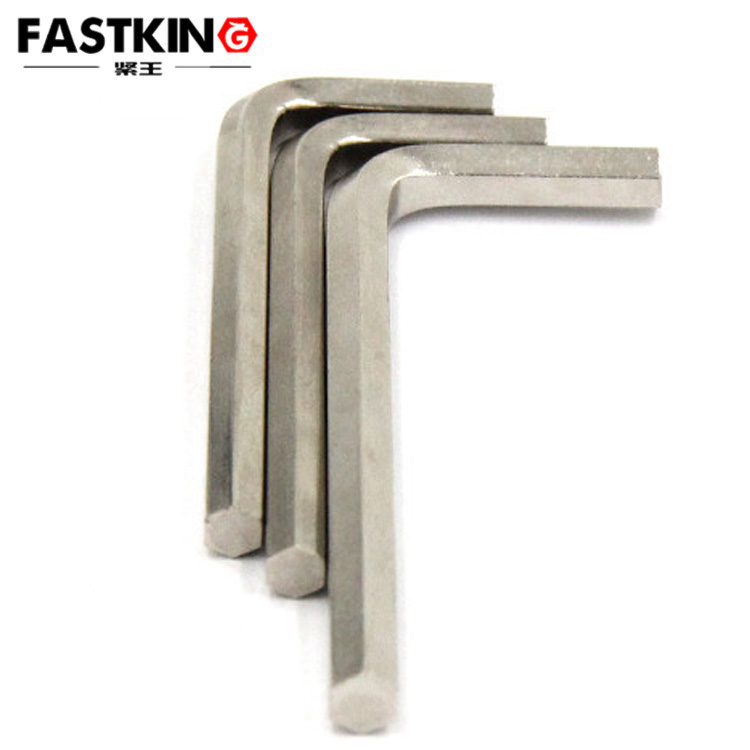

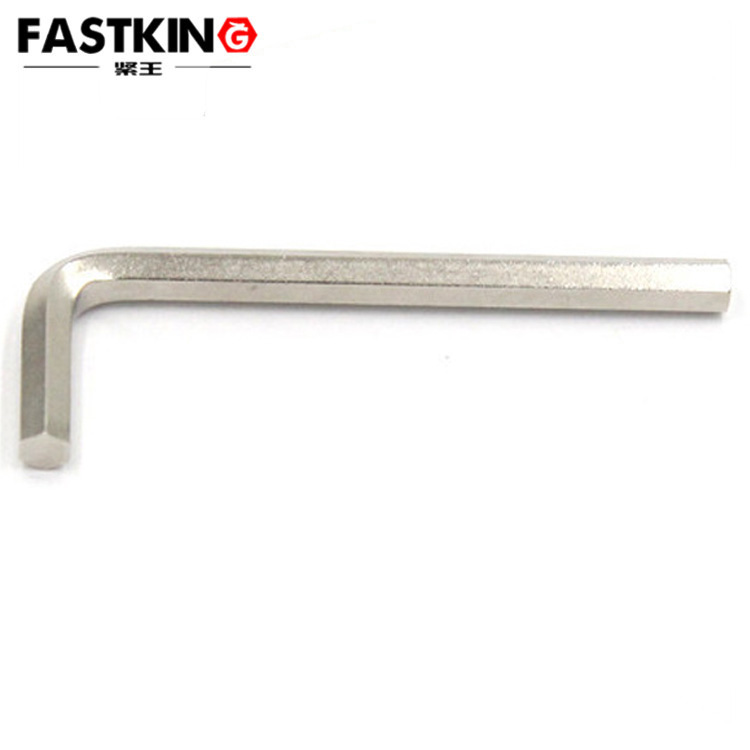

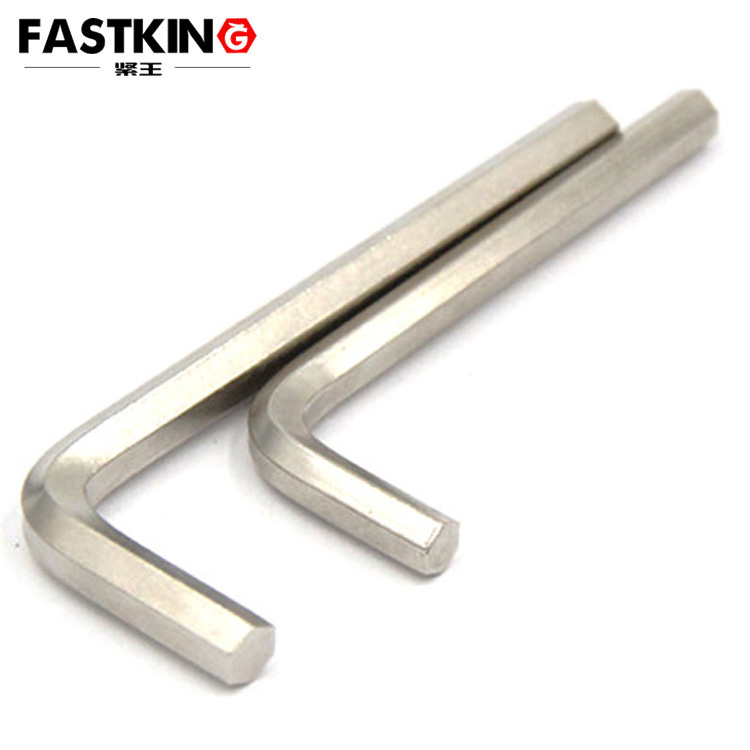

L-type flat head hexagon wrench
- Product description：The L-type wrench provides two ways to lock the screw, which is convenient for you to insert into some inaccessible positions. The long handle can also provide leverage to help tighten the screw.
L-type flat head hexagon wrench
Material: stainless steel 304316, grade 8.8 high strength and grade 12.9 high strength
Product standard:DIN911
It can also support non-standard customization.
I. Structural Design: Balancing Flexibility and Practicality
The core structure of the L-type flat-head hexagon wrench centers on the "L-shaped rod" and "flat-head internal hexagon head" — a design that seems simple yet incorporates thoughtful details. The rod is bent at a 90° right angle, divided into two parts: the "long handle" and the "short handle". The long handle typically ranges from 10 to 20 centimeters in length (adjustable based on specifications), facilitating force application and making it suitable for tightening or loosening screws that require relatively high torque. The short handle, usually 3 to 5 centimeters long, is compact and flexible, allowing it to reach narrow spaces or deep holes — solving the problem of the long handle being unable to access such areas. This "one long, one short" design enables the wrench to handle both conventional working conditions and special spatial constraints, significantly enhancing its compatibility across usage scenarios.
The head features a "flat-head internal hexagon" shape. The size of the internal hexagon hole precisely matches the opposite side dimension of internal hexagon screws (common specifications range from 1.5mm to 10mm), ensuring a tight fit with the screw head and preventing slippage. Unlike round or ball heads, the "flat-head" design fully adheres to the top plane of the screw, avoiding damage to the screw head during force application. This makes it particularly suitable for scenarios where screw appearance protection is critical, such as the assembly of precision instruments and high-end furniture. Additionally, high-quality wrenches adopt an integrated forging process for the head and rod, eliminating welding seams. This enhances strength, allowing the wrench to withstand high torque without deformation or breakage.
II. Core Advantages: Practical Features Surpassing Ordinary Wrenches
Compared to straight-bar internal hexagon wrenches or Phillips screwdrivers, the L-type flat-head hexagon wrench offers three key advantages:
First, excellent spatial adaptability. In narrow spaces such as inside equipment or furniture gaps, straight-bar wrenches often cannot rotate due to their excessive length. In contrast, the short handle of the L-type wrench can be directly inserted into deep holes or narrow gaps, while the long handle provides a force application point on the outside. No additional adjustment of the operating angle is needed, enabling easy screw installation and removal. For example, when installing a graphics card or hard drive inside a computer case — where space is tight — the short handle can reach the gap between the motherboard and the case, and the long handle allows users to apply force with their hands or auxiliary tools (such as socket extensions), resulting in much higher efficiency than straight-bar wrenches.
Second, precise and controllable force application. The L-shaped structure offers obvious mechanical advantages: the long handle amplifies force through the "lever principle", allowing users to tighten screws without excessive effort — preventing screw stripping caused by overexertion. The short handle, on the other hand, is suitable for fine adjustment. When the screw is nearly tightened, slow rotation with the short handle enables precise torque control, avoiding damage to connected components (such as plastic casings or thin metal plates) from over-tightening. This "coarse adjustment with the long handle, fine adjustment with the short handle" logic makes it easy for beginners to master precise fastening techniques.
Third, outstanding durability. High-quality L-type flat-head hexagon wrenches are mostly made of chrome-vanadium steel or S2 tool steel. After quenching, these steels reach a hardness of HRC 50-55 (Rockwell hardness), withstanding frequent use without wear. The edges of the internal hexagon hole in the head undergo chamfering, resulting in a smooth, burr-free surface that prevents scratching the screw surface during insertion — extending the service life of both the screw and the wrench. Some products also feature chrome plating on the surface, forming a rust-proof protective film. Even when stored in humid environments, they are less prone to rust and maintain good usability over the long term.
III. Application Scenarios: Wide Coverage from Professional to Daily Use
The practicality of the L-type flat-head hexagon wrench enables its wide application in both professional fields and daily life, focusing on three types of scenarios:
Professional industrial scenarios: It is a core tool in mechanical manufacturing, automotive maintenance, and electronic equipment production. For instance, the sensor fixing screws inside automobile engine compartments and the gear assembly screws inside printers are mostly internal hexagon 規格 and installed in narrow spaces. The short handle of the L-type wrench can reach the gaps between components, while the long handle meets torque requirements, ensuring stable screw connections. In the assembly of new energy equipment (such as photovoltaic inverters), its precise force application feature prevents deformation of circuit boards caused by over-tightening screws, safeguarding the safe operation of the equipment.
Home and furniture installation: In modern homes, internal hexagon screws are widely used as connectors for panel furniture such as wardrobes, bookcases, tables, and chairs — making the L-type flat-head hexagon wrench the preferred supporting tool. During installation, the short handle can penetrate the pre-drilled holes in furniture panels, and the long handle allows users to apply force manually, eliminating the need for large tools like electric drills. Ordinary users can assemble a piece of furniture within half an hour. Additionally, when installing household items such as lamps and hooks, the short handle can be easily operated in the angular space between walls and ceilings, avoiding wall damage caused by tool collisions.
Precision instrument and small appliance maintenance: Products such as watches, cameras, coffee machines, and vacuum cleaners have small, high-precision internal screws. Ordinary wrenches tend to slip and damage these screws, but small-specification L-type flat-head hexagon wrenches (e.g., 1.5mm, 2mm) precisely match miniature internal hexagon screws. The short handle reaches inside the equipment, and the long handle enables fine force adjustment — allowing smooth screw removal without damaging precision components, making it an essential tool for maintenance enthusiasts.
IV. Usage and Selection: Small Details Determine User Experience
To fully leverage the performance of the L-type flat-head hexagon wrench, attention must be paid to correct usage methods and rational selection:
When using the wrench, the "matching first" principle should be followed: first, confirm the opposite side dimension of the internal hexagon screw and select a wrench of the corresponding specification (e.g., a 2mm wrench for a screw with a 2mm opposite side). Mismatched sizes easily cause slippage or screw damage. When inserting the wrench into the screw, ensure the head is fully fitted over the screw to avoid applying force at an angle. For rusted screws, drop a small amount of lubricating oil on the screw, wait for a moment, then apply force slowly with the long handle — avoiding forced rotation that may break the wrench.
Three key points should be considered when selecting a wrench:
- Material: Prioritize chrome-vanadium steel or S2 tool steel. These materials offer high hardness and good toughness, with much better durability than ordinary carbon steel.
- Precision: High-quality wrenches have small internal hexagon hole size errors (usually within ±0.02mm) and smooth surfaces. This can be judged by checking for burrs on the head and verifying dimensional accuracy.
- Set selection: For daily use, an 8-10 piece set (covering common specifications from 1.5mm to 10mm) is recommended. For professional scenarios, larger or smaller specifications can be added as needed. Tool sets typically come with storage cases for easy storage and portability, preventing loss.
As a "down-to-earth" practical tool, the L-type flat-head hexagon wrench has no complex functions. However, with its precise structural design and flexible usage characteristics, it plays an irreplaceable role in various industries. Whether for professional operations or daily home use, it delivers "efficient, precise, and durable" performance, helping users easily solve screw fastening problems and truly earning its reputation as a "versatile tool" in the toolbox.
